Service 05

Foundations &
Support Systems

Spread footings, grade beams, pile caps, equipment supports, and site-driven structural elements. PE-led foundation engineering prepared for permit submission and field coordination.

Discuss this Scope

At a Glance

Documentation

Prepared clearly for permit submission

Principal

Direct involvement on every scope

Permit-Ready

Packages built for jurisdiction review

Site-Driven

Scopes tied to real conditions

What's Included

Foundation engineering
for active project scopes.

Foundation and support system work covers the structural design of below-grade and at-grade elements, from spread footings and grade beams through equipment pads, support frames, and site-specific structural elements. All work is documented clearly and structured for permit submission, revision, and follow-up.

Spread FootingsDesign of individual column footings and wall footings for new construction and addition scopes.

Grade BeamsContinuous grade beam design for slab-on-grade systems, retaining applications, and perimeter foundations.

Equipment SupportsStructural pads and frames for mechanical, electrical, and process equipment with specific load and vibration requirements.

Pile Caps & Deep FoundationsPile cap design and documentation for projects requiring deep foundation systems or poor soil conditions.

Support FramesSteel and concrete support structures for elevated equipment, sign bases, canopy columns, and site elements.

Site-Driven ElementsFoundation components for specialty scopes: sculpture bases, bollards, flag poles, and custom site structures.

Support of Excavation (SOE)Structural engineering for temporary earth retention systems, including sheet pile walls, soldier pile and lagging, and bracing design for excavation support.

How It Works

Grounded in site conditions.
Prepared for permit.

Foundation work is driven by project-specific conditions: soil reports, loading from the structure above, local jurisdiction requirements, and the scope of the overall project. When geotechnical data and design loads are provided upfront, calculations can begin without unnecessary delay.

All foundation packages are prepared for jurisdiction submission, structured clearly for plan review, correction cycles, and approval.

Sample Work

Real foundation scope examples.

Foundation packages, retaining wall analysis, and site-driven structural deliverables.

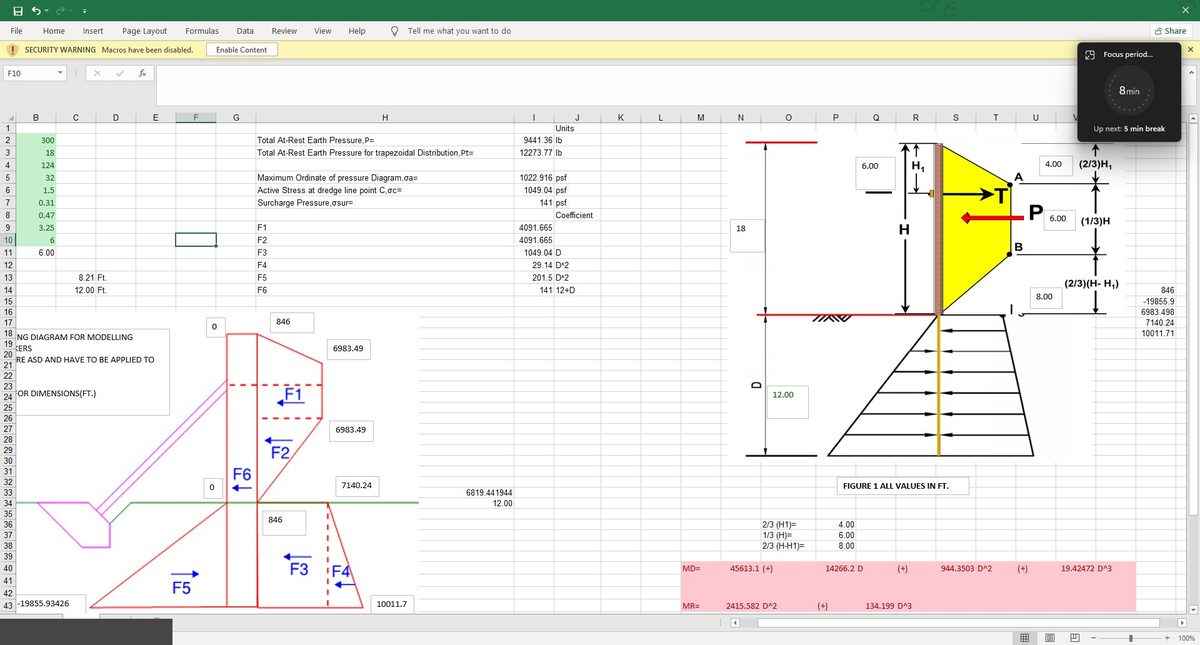

Sample 1

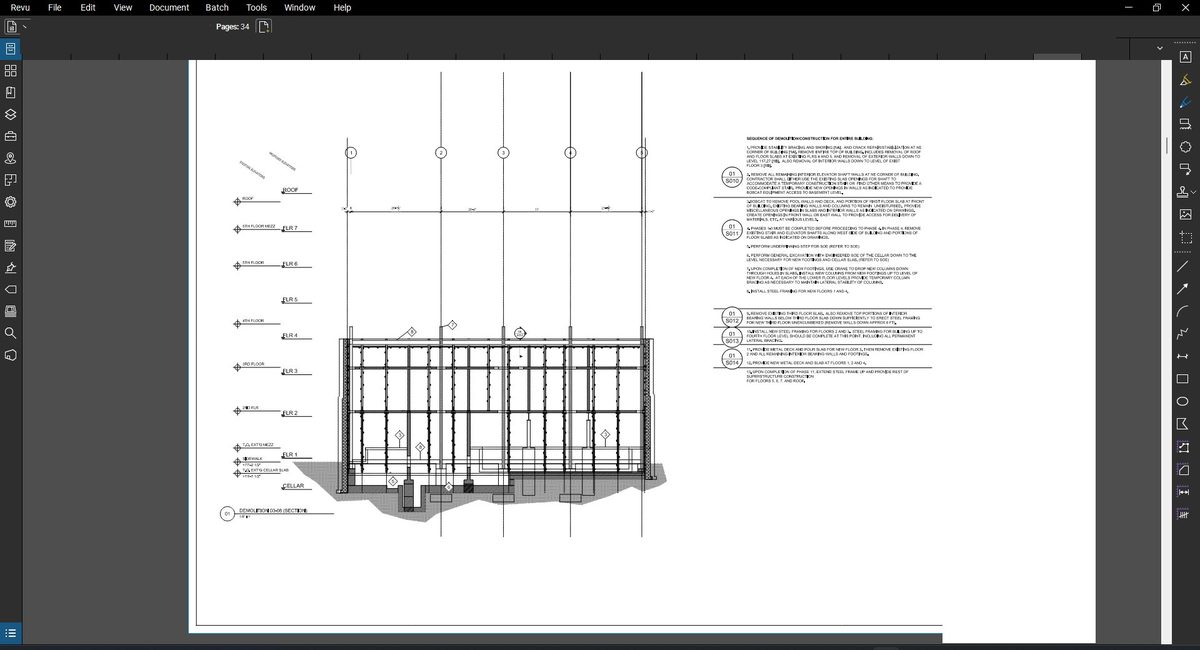

Sample 2

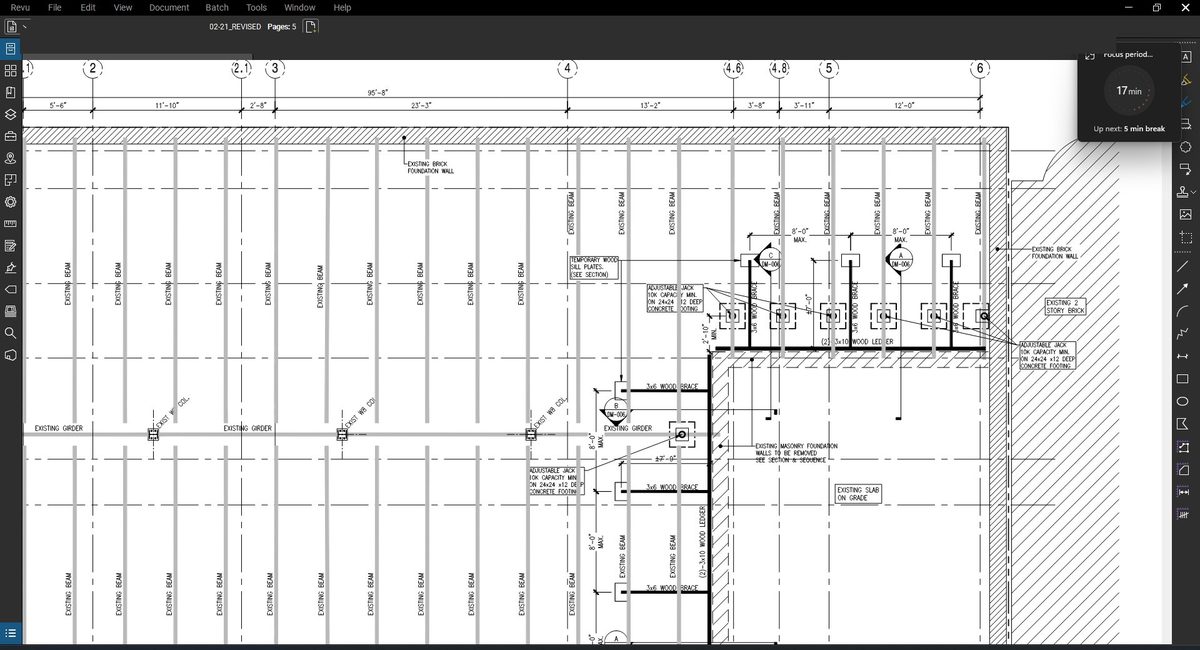

Sample 3

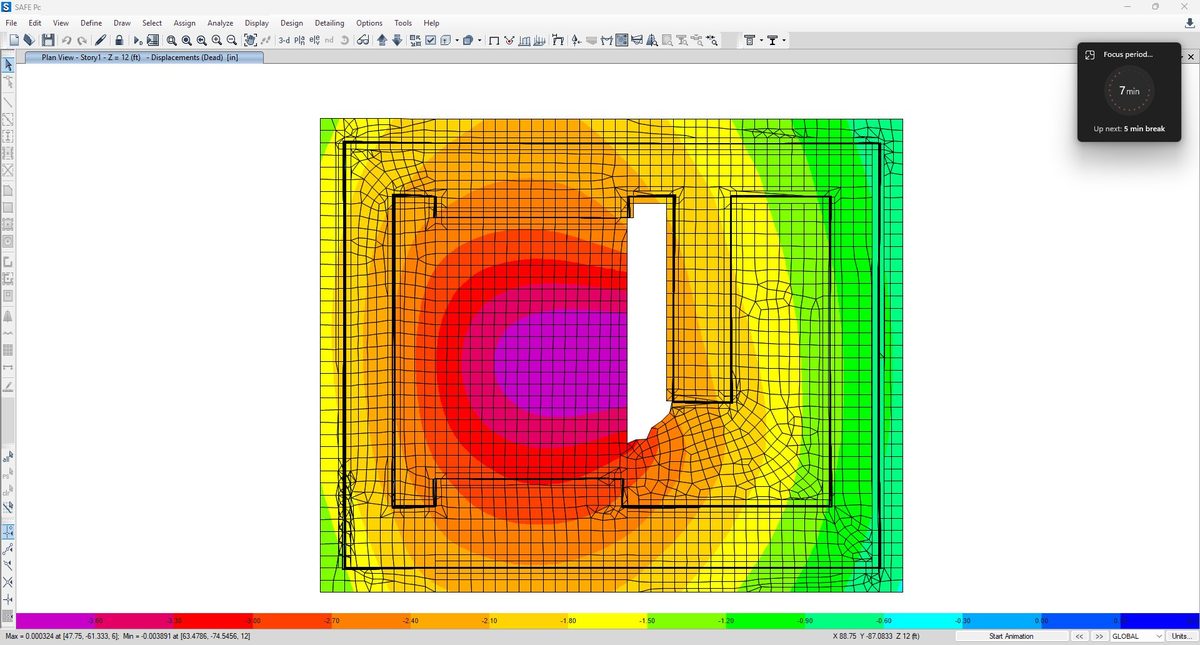

Sample 4

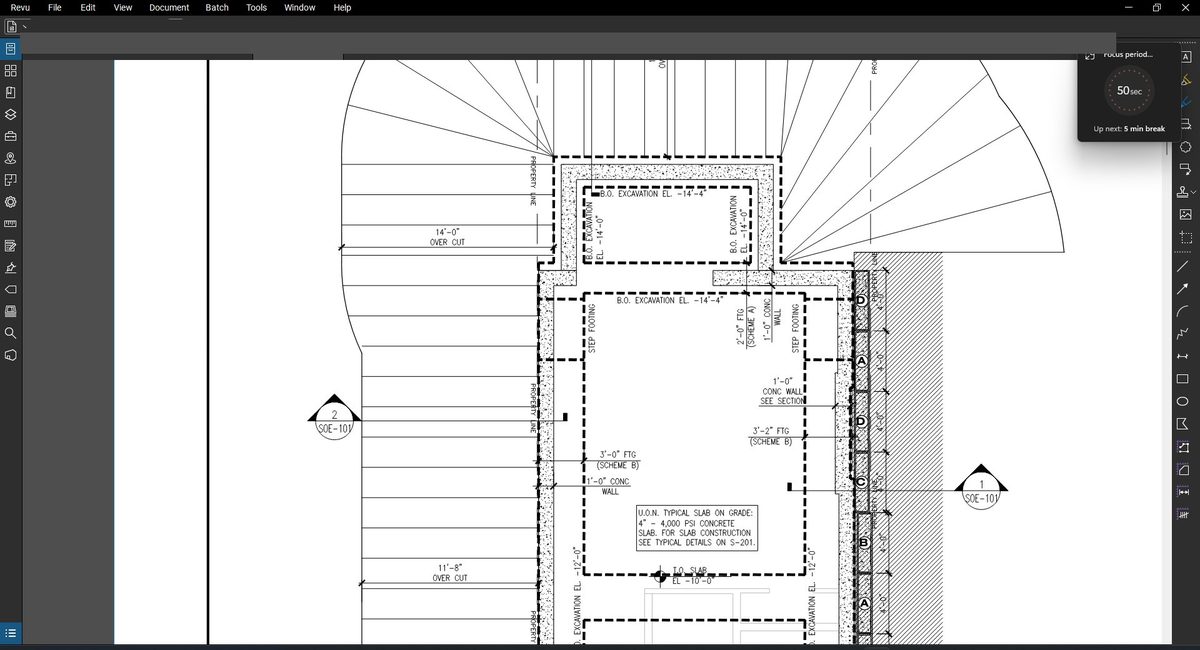

Sample 5

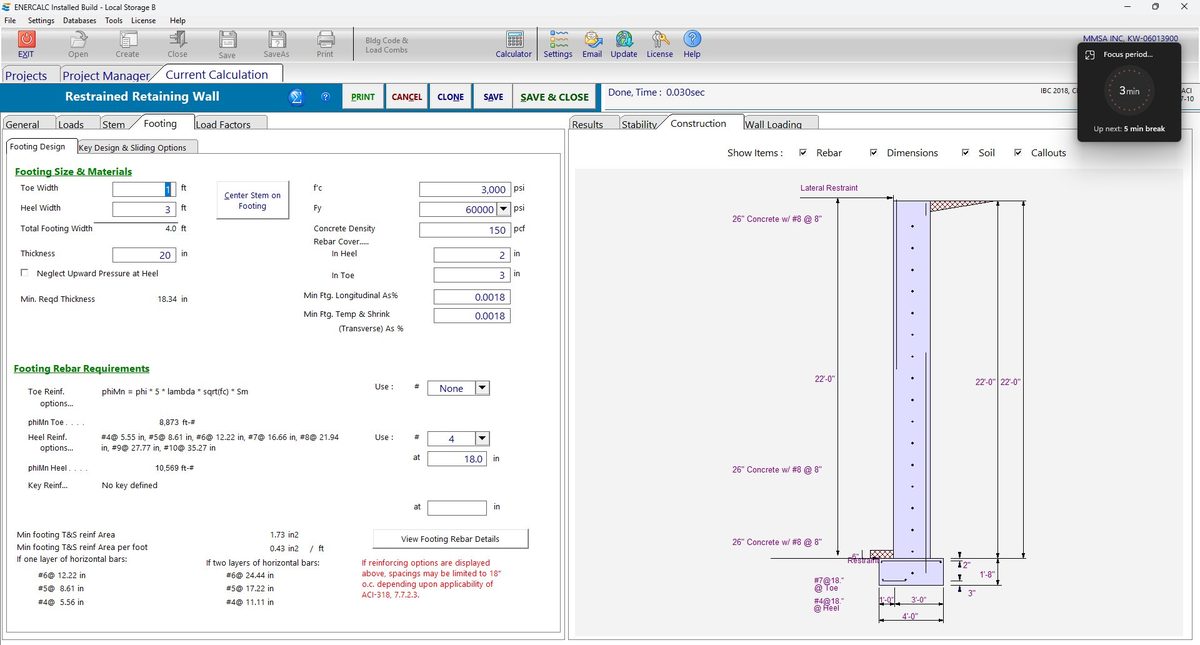

Sample 6

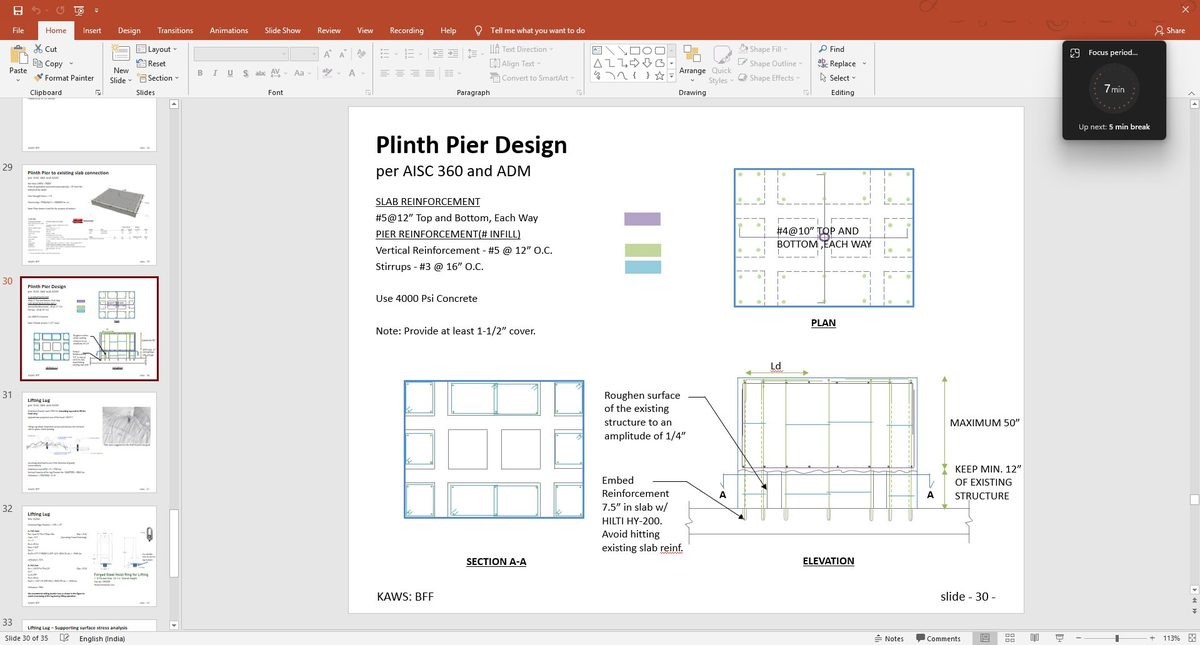

Sample 7

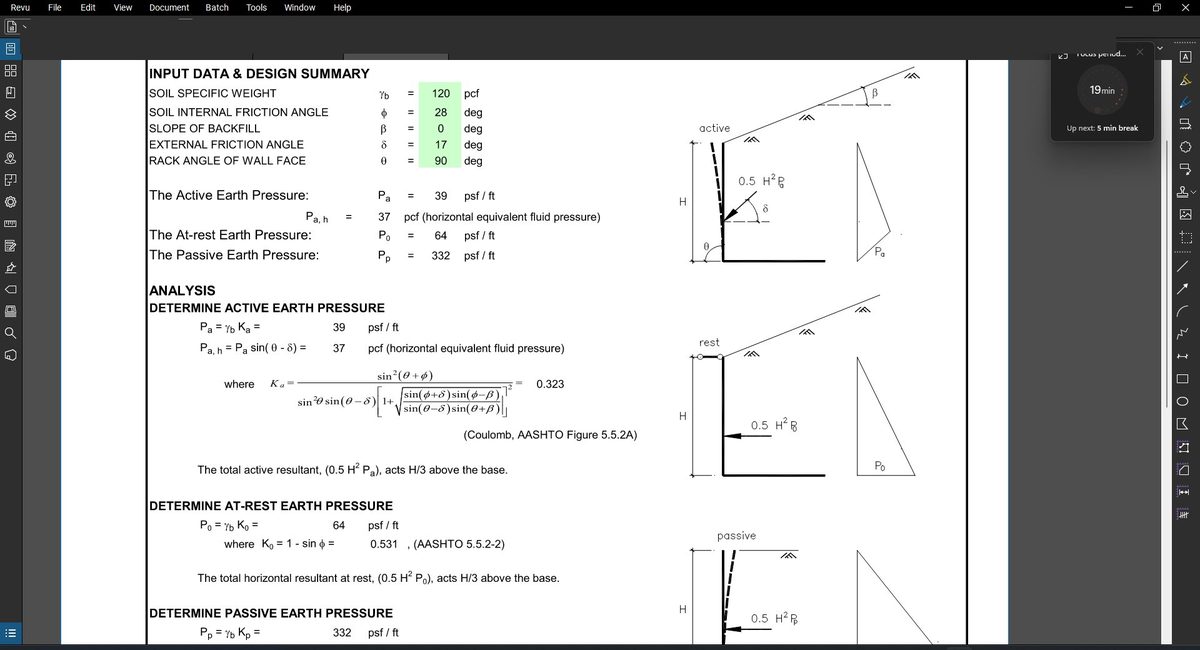

Sample 8

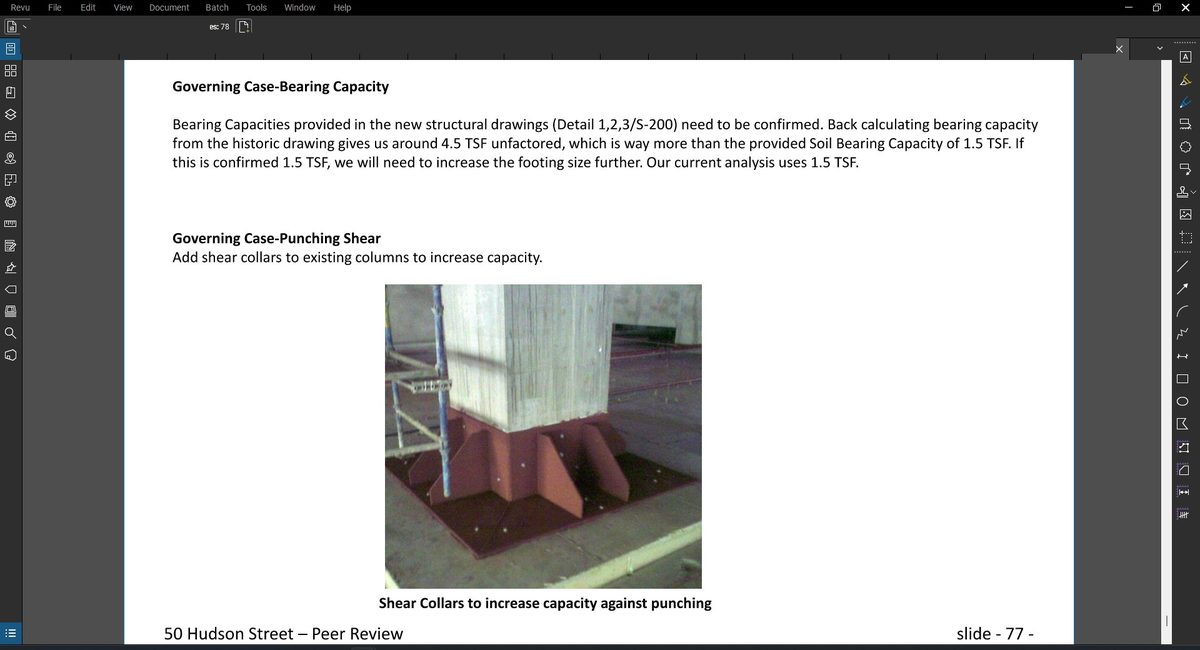

Sample 9

Where TruzenWorks Fits Best

The right fit for projects
that need the ground right.

Foundation scopes are well-suited to the TruzenWorks workflow when soil data and structural loads are available. Clear inputs allow calculations to move quickly and packages to return ready for permit.

General Contractors

Foundation packages for permit submission on active construction projects, coordinated with architectural and structural drawings.

Structural Engineering Firms

Foundation scope support for firms handling superstructure design and needing capacity for the below-grade elements.

Specialty Contractors

Equipment pads, support frames, and site structural elements for mechanical, sign, and specialty installation scopes.

Foundations &Support Systems

Foundation engineeringfor active project scopes.

Grounded in site conditions.Prepared for permit.

Real foundation scope examples.

The right fit for projectsthat need the ground right.

Have a foundation scope?
